YILDIZ 36”- 57” TIRE CUTTING MACHINE

Yıldız 36”- 57 ”Tire Cutting

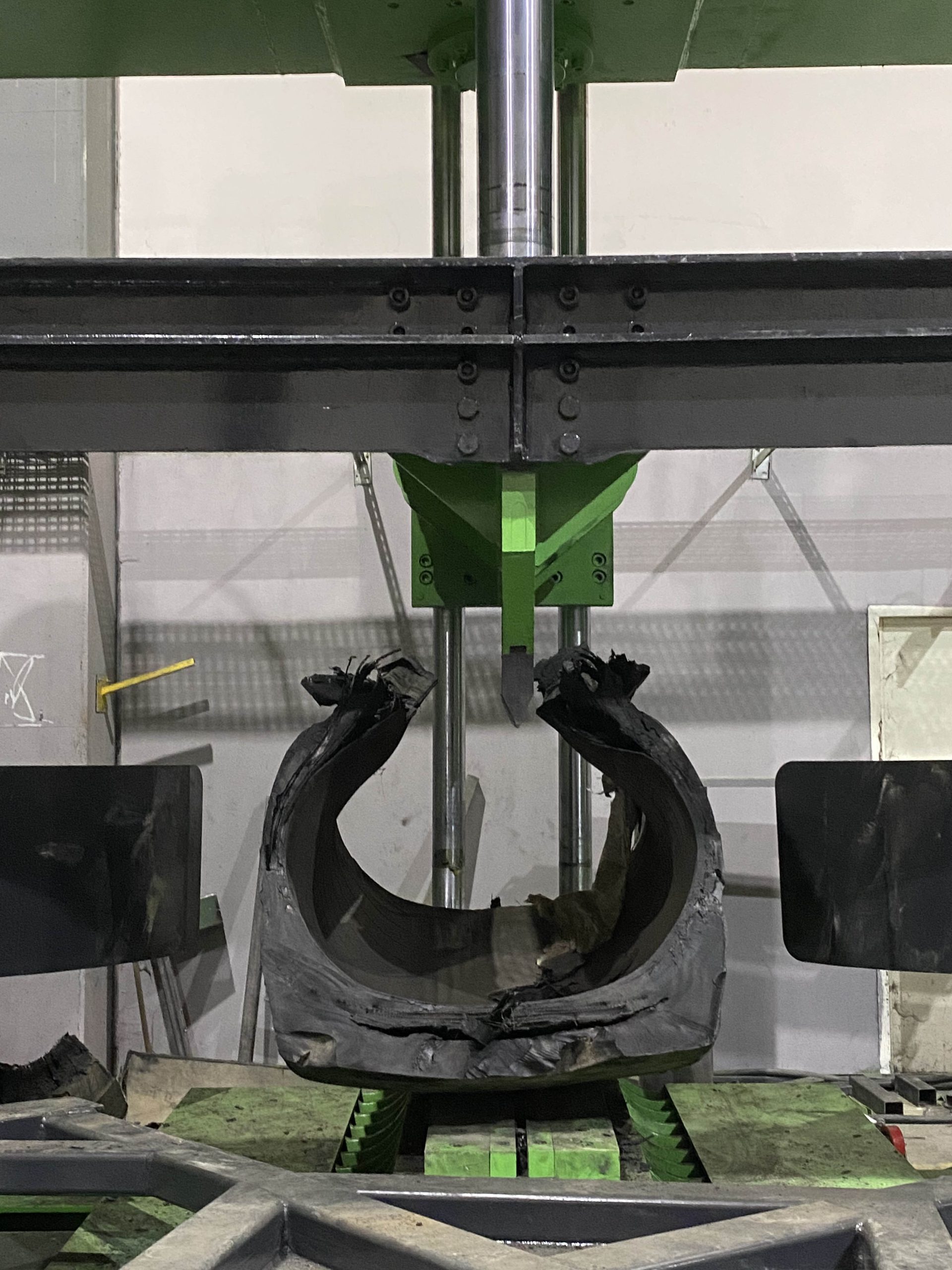

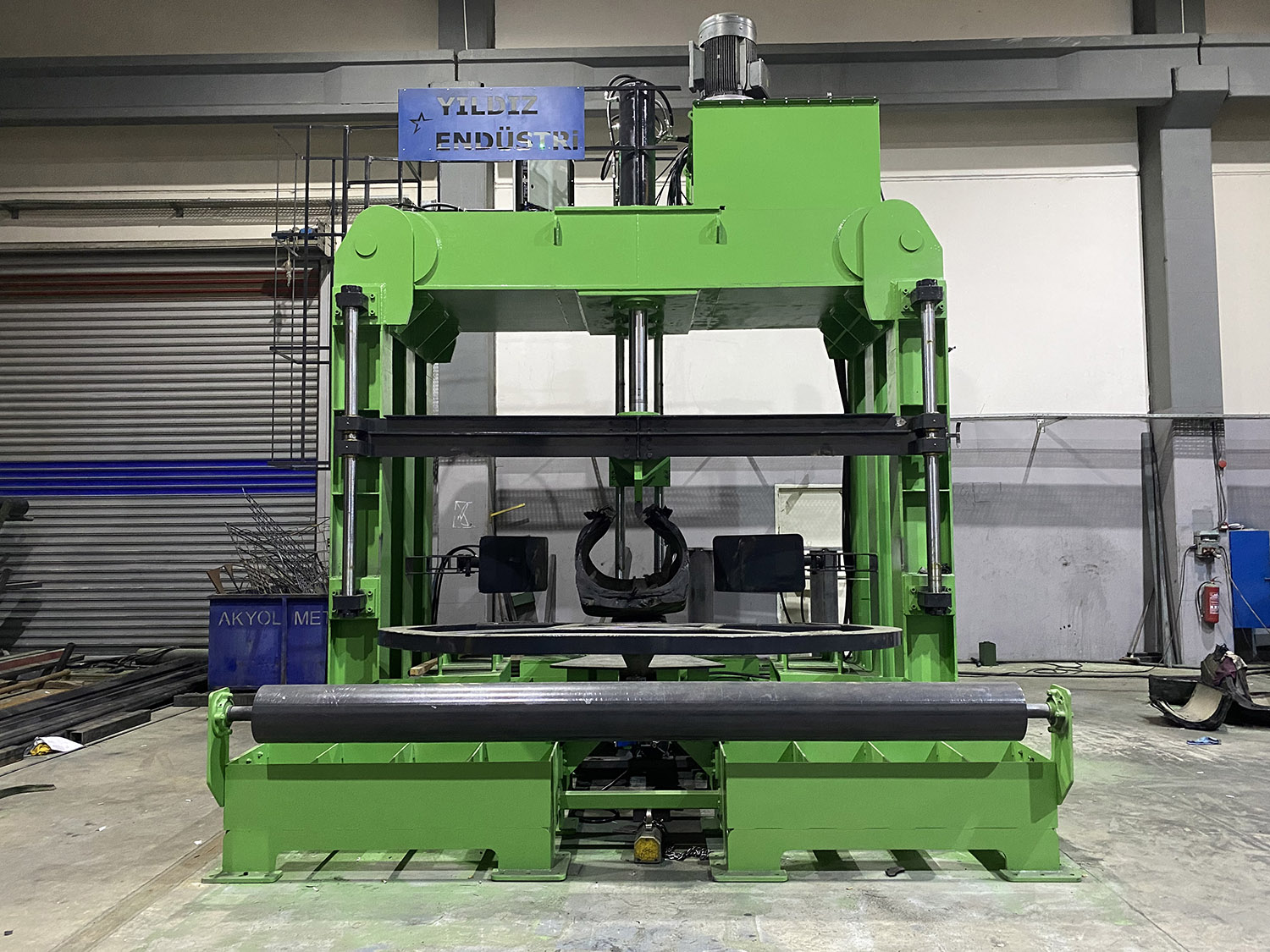

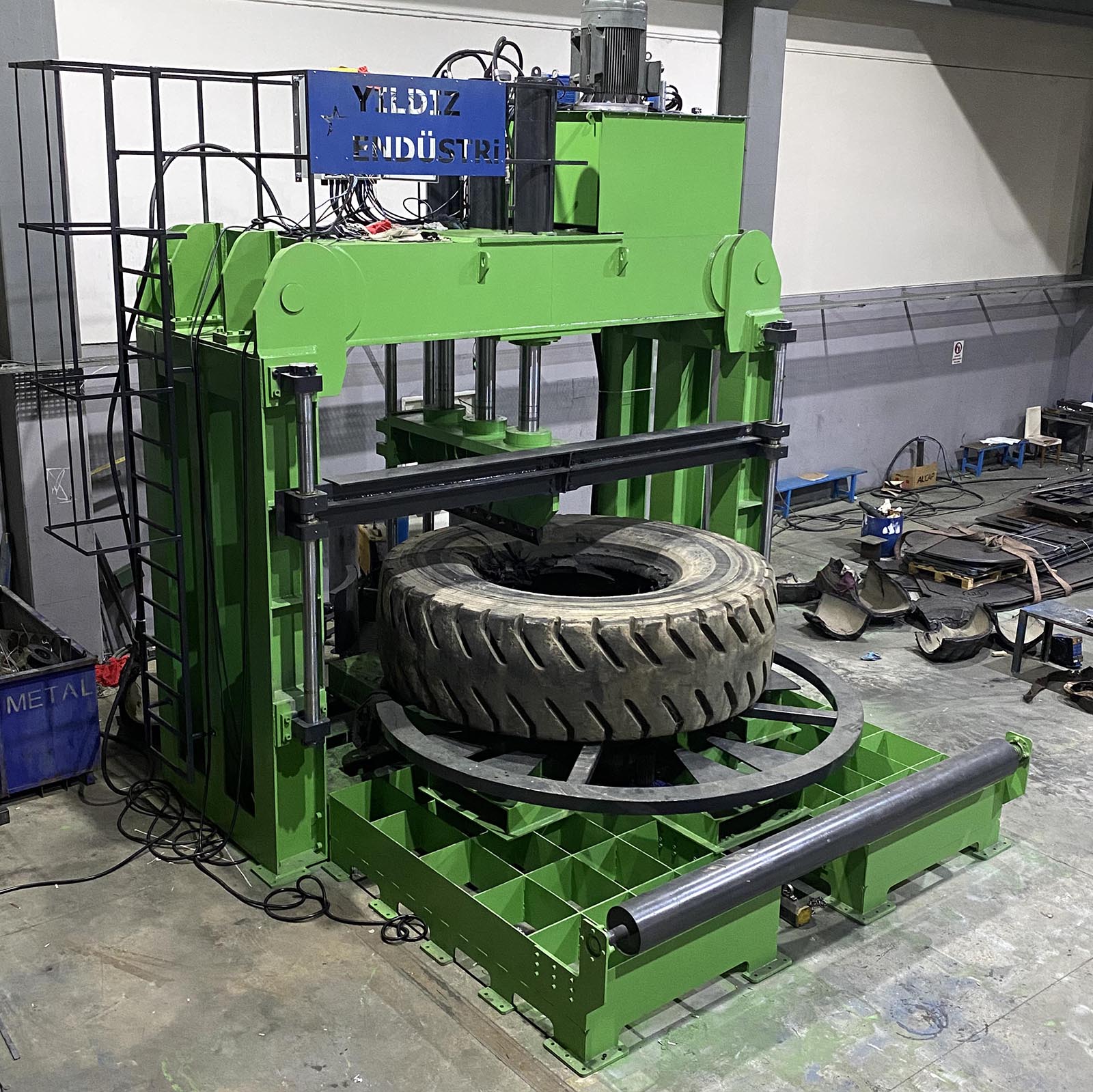

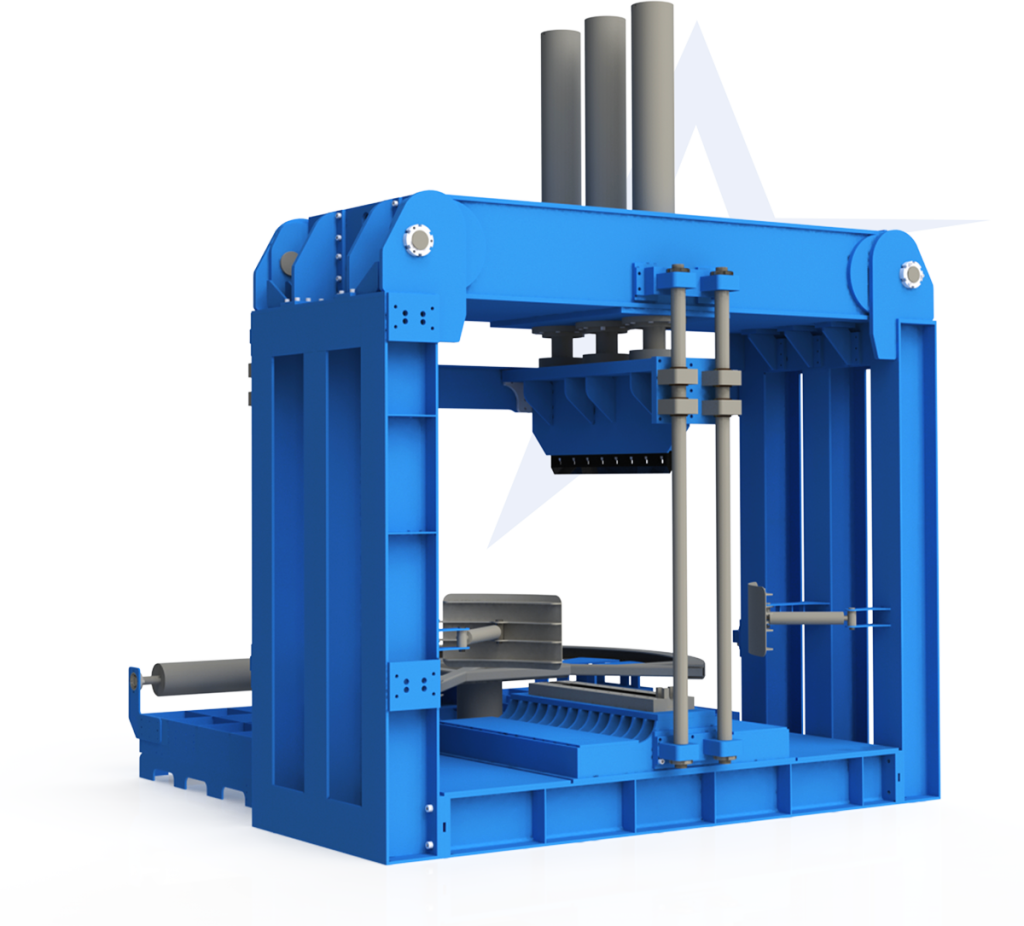

Yıldız 36”- 57 ”Tire Cutting Press is designed and manufactured in a way that allows industrial grade heavy machinery tires to be downsized and cut into smaller pieces. It can be used very easily with two (2) personel in your recycling facility. With its ergonomic structure, our 36”- 57” model is designed with a hydraulic power of 180 tons and a maximum hydraulic pressure of 200 bar; with these specs and sturdy blade our machine is a long-lasting product that you can use for many years without a doubt.

Product Catalogue

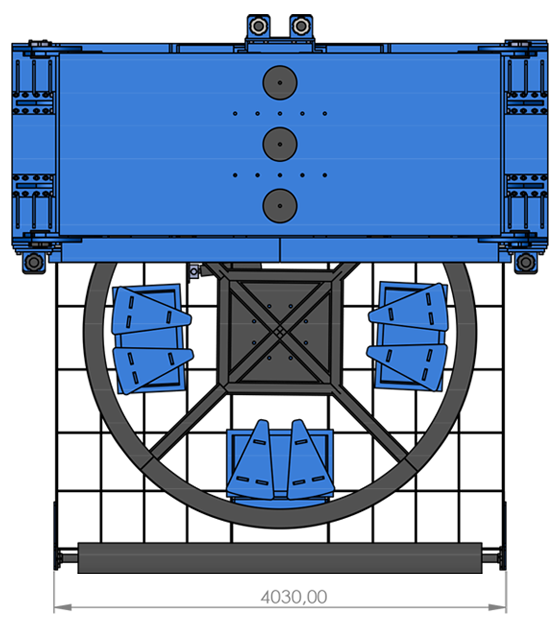

36”-57 TIRE CUTTING MACHINE TECHNICAL DRAWING

36”-57 Tire Cutting Machine Technical Specifications

1 JANT ÇAPI – RIM DIAMETER :  45” – 49” –  51” – 57”
M HİDROLİK GÜCÜ – HYDRAULIC POWER :  180 Tons
N MAXSİMUM BASINC – MAXIMUM PRESSURE :  200 Bars
O YAĞ TANKI – OIL TANK :  600 Lt.
P SİLİNDİR ÇAPI – CYLINDER DIAMETER :  250mm.
Q 3 ADET STROK SİLİNDİR – 3 STROKE CYLINDERS :  1000mm.
M MOTOR GÜCÜ – MOTOR POWER               :  45 kW
S 360 DERECE DÖNÜNTÜ AYARI (6 PARÇAYA BÖLER) – 360 DEGREE ROTATING ADJUSTMENT (DIVISIONS IN 6 PIECES)
T SÜRME  PLATFORMU (DEMONTE EDİLEBİLİR) – SLIDING PLATFORM (CAN BE DISASSEMBLED)
U GÜVENLİK BARİYER DUVARI – SECURITY BARRIER WALL
V UZAK BAĞLANTI – REMOTE CONNECTION
W CE KALİTE BELGELİ – CE QUALITY CERTIFICATE
